Reference · R-12
R-12-era cabinets: what the plate says and what it changes
A Sub-Zero rating plate names the refrigerant type and the charge. On an older cabinet that line may read R-12, and it changes one class of work completely while leaving every other class exactly where it was.
| Work | Does the refrigerant matter |
|---|---|
| Door and drawer seals | No. A seal is fitted from the outside and the circuit is never opened to do it. |
| Condenser cleaning and fan motors | No. Both live outside the sealed circuit, behind the grille or the kickplate. |
| Defrost heaters, limits and sensors | No. These are wired components, and the charge is untouched by the work. |
| Controls, boards and switches | No. Electrical work on an older cabinet is the same job whatever the plate names. |
| Ice maker modules and fill valves | No. The module, its valve and its fill line all sit outside the sealed circuit. |
| Hinges, slides, shelves and trim | No. Hardware and interior fittings raise a supply question, never a refrigerant one. |

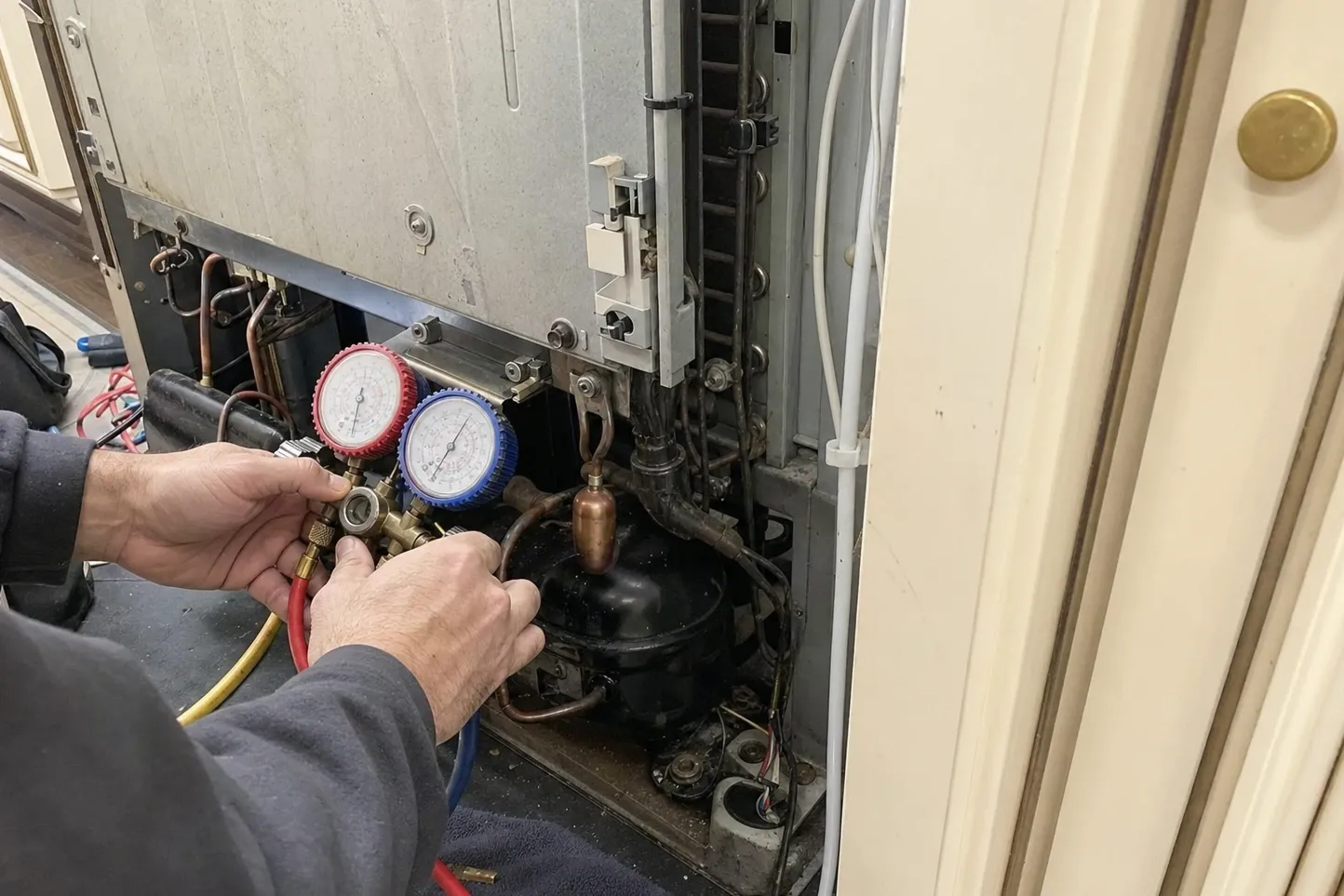

| Leaks, compressors, driers and the charge | Yes. Anything inside the sealed circuit is recovery work, and the type on the plate governs how it is done. |
What to do with that
- 1 Read both refrigerant lines. The plate gives the type and the charge. Photograph them beside the model and the serial, and those four lines describe the cabinet completely for everything that follows.
- 2 Sort the fault to one side of the circuit. A dead fan, a dark lamp, a packed condenser, frost in one corner: none of these is a refrigerant question, and none of them should be treated as one until the outside of the circuit is ruled out.
- 3 Leave the circuit closed until it is diagnosed. There is nothing here for an owner to do and no reading worth taking by hand. Owner checks on any cabinet stop at the grille, the seals, a setting and the breaker.
- 4 Know what opening it involves. Recovery comes first, and who is allowed to carry it out is settled by federal law rather than by any shop. The Clean Air Act requires EPA Section 608 technician certification of anyone servicing equipment which could release these refrigerants.
- 5 Take the age of the gas as a fact, not a verdict. The United States ban on producing and importing CFCs took effect on 1 January 1996, and R-12 is a CFC. That dates the gas in the cabinet. It does not by itself decide anything about the cabinet.
The cabinets this question is usually asked about are 500 Series and earlier. To place yours in time, read which series replaced which . Everything short of the sealed system is ordinary refrigerator repair .
Follow-ups
- Can an R-12 Sub-Zero still be repaired?
- Most of what goes wrong on a cabinet of that age sits outside the sealed circuit, and none of that work is affected by the refrigerant at all: seals, fans, defrost parts, controls, hinges and trim. Where the fault is inside the circuit, the diagnosis comes first and the answer follows it rather than the other way about.
- Where on the plate is the refrigerant printed?
- On the same tag as the model and the serial, which Sub-Zero puts inside the door near the top hinge on full-size cabinets. The tag carries the refrigerant type and the charge along with the manufacture date and the total amps. Read the whole tag out to Sub-Zero Repair Service Denver on (720) 770-4189.
Checked against
- Sub-Zero serial tag locations That the tag prints refrigerant type and refrigerant charge beside the model, the serial, the manufacture date and the total amps.
- EPA, phaseout of Class I ozone-depleting substances The ban on production and import of Class I substances, CFCs among them, in effect from 1 January 1996.
- EPA, Section 608 technician certification That anyone maintaining, servicing, repairing or disposing of equipment which could release ozone-depleting refrigerants must hold that certification.
- NIST Chemistry WebBook, dichlorodifluoromethane That R-12, CFC-12 and dichlorodifluoromethane are names for one and the same compound.
