Series · PRO / 648PRO
Sub-Zero PRO 48 and 648PRO: the Professional cabinet
Two panels to read on this cabinet: an interior control panel for the settings, and an external display carrying freezer, refrigerator and drawer temperatures with REPLACE FILTER and SERVICE beside them.
Models in the series
| Model | Type | Note |
|---|---|---|
| 648PRO | The 48-inch Professional cabinet | 48 inches wide, 84 inches tall; 18.4 and 11.7 cu ft |
| 648PROG | The same cabinet with a glass door | LIGHT on the control panel runs the accent lighting |
| PRO4850 | Professional cabinet, plate in the same position | Sub-Zero lists it alongside the 648PRO for plate location |
| PRO3650 | The 36-inch Professional, not this cabinet | Its plate sits left of the freezer drawer, not the upper one |
What fails with age
| Assembly | How it shows |
|---|---|
| Condenser behind the grille | The grille pulls out at its bottom edge and rotates up; condenser and water filter share the space behind it. A clean is asked for every three to six months, and a skipped year shows as a cabinet that never stops running. |
| Water filtration system | Rated for 750 gallons or twelve months, whichever arrives first, and then REPLACE FILTER appears in the external display. A message that returns straight after a change is worth a look. |

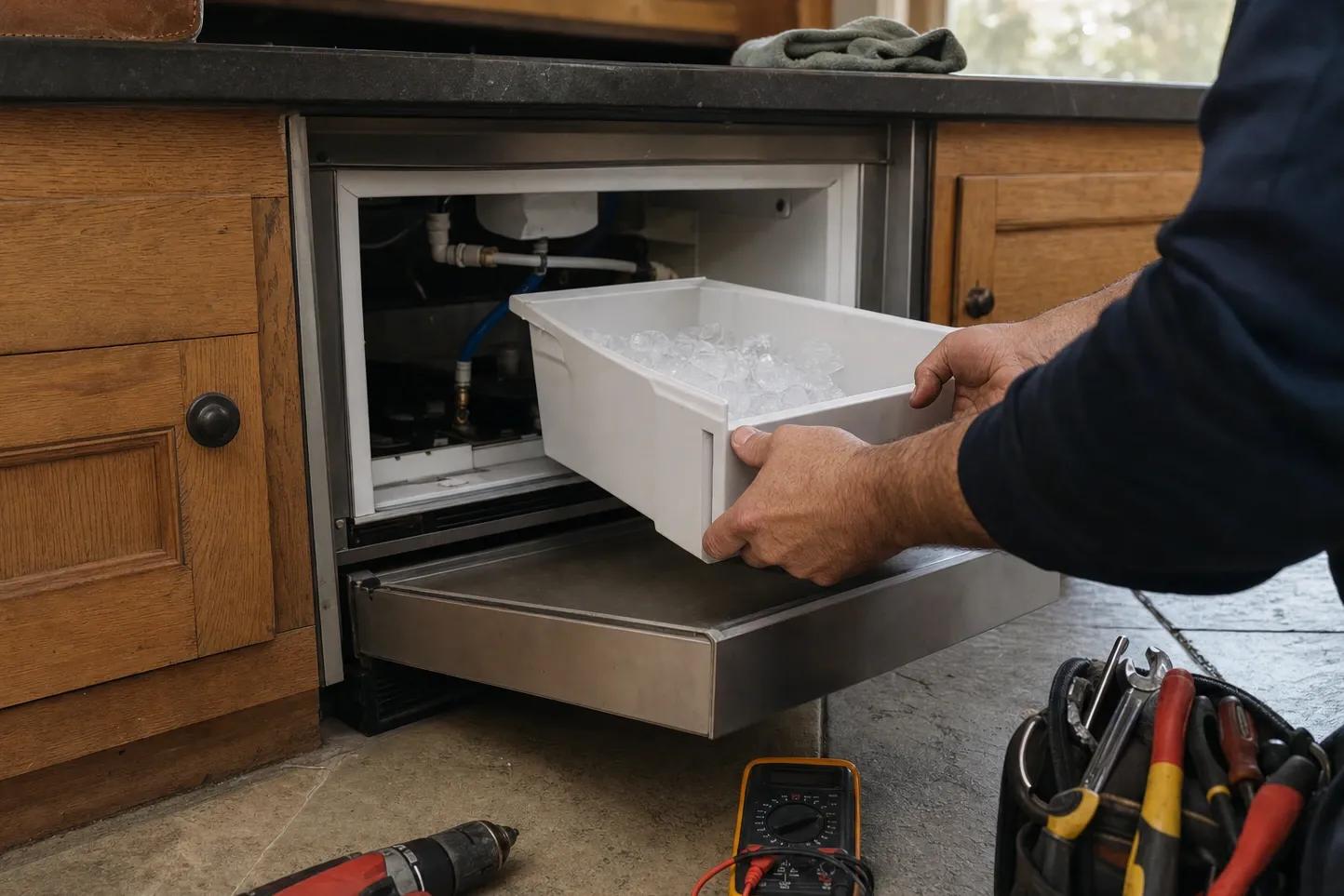

| Ice maker and container | The maker cycles eight cubes every two hours. Cubes fused into one block usually mean ice left standing; a container that never fills at all is the module. |
| Drawer slides, gaskets and hinges | Three loaded drawers under two tall doors. A drawer front that drops, or a seal that no longer wipes the frame, turns up as frost in the freezer drawer. |
Parts status
| Part | Supply |
|---|---|
| Door and drawer gaskets | Ordered against the model and serial from the plate inside the drawer, and fitted more often than anything else here. |
| Water filter cartridges | A current catalogue item for this cabinet. It is picked by the cabinet in front of you, not by the family it sits in. |
| Drawer slides, bins and dividers | The category where a number has most often been superseded. A substitute is settled before a visit is booked. |
| Boards, keypads and the external display | Matched on the serial. Supply is confirmed first, and no promise is made about the repair before it is. |
What a visit involves
- 1Upper freezer drawer out, plate photographed, model and serial checked against the cabinet standing in front of us.
- 2Temperatures taken in all three zones, because refrigerator, refrigerator drawers and freezer are set separately here.
- 3Grille opened, condenser cleared, filter life read off the external display while it is open.
- 4Nothing is ordered until you have the band, the figure inside it, and a plain account of what is worn.
Repairs on this series usually land in these bands: Ice module, inlet valve or fill line$260–$750; Door seal or drawer gasket$270–$680; Control board or user interface$390–$1,000. The figure inside the band is agreed before anything comes apart.
Do not confuse it with a 48-inch BI and Classic side-by-side. Professional cabinets are fewer on the ground, which changes the parts route . The ice maker and its container are ice maker repair work.
Follow-ups
- Is a PRO 48 the same thing as a 648PRO?
- PRO 48 is the line; 648PRO and 648PROG are the designations Sub-Zero prints on the plate, and PRO4850 turns up in the same company's list of plate locations. For a parts order the distinction hardly matters: read out whatever is on your plate to Sub-Zero Repair Service Denver on (720) 770-4189 and the visit is $89 credited to the repair.
- What does REPLACE FILTER in the display mean?
- It is a counter rather than a fault. The cartridge is rated for 750 gallons or twelve months, whichever arrives first, and the display raises the message when one of the two is reached. It sits behind the same grille as the condenser. If the message comes straight back after a change, ring us.
Checked against
- PRO 48 Refrigeration Use and Care Guide Rating plate inside the drawer, condenser and water filtration behind the grille, the three to six month cleaning interval and the display indicators.
- Sub-Zero design guide, PRO 48 section 648PRO and 648PROG, the 48 by 84 inch cabinet, the interior capacities and the shipping weights.
- Sub-Zero serial tag locations Plate left of the upper freezer drawer on PRO4850 and 648PRO, and left of the freezer drawer on PRO3650.
Two ways in, and nothing to fill in
Give us the model number and what the cabinet is holding. That is usually enough to know which circuit is at fault before anyone is dispatched — and which parts belong on the van.
